The Two Channels IF Record and Replay System is a PXIe based system with software capable of finding, channelizing and recording the signals of interest. Supports automated detection and recording of up to 32 different signals (16 signals per channel) with selectable bandwidths. Replay of 2 channels simultaneously is also supported.
- Two inputs, 14-bit resolution, 250MS/s sampling rate
- 70MHz IF Frequency
- Record: 32 signals (16 per channel) with configurable bandwidths
- Storage: RAID (2 Hrs for 2 simultaneous channels at 40MHz BW)
- Replay: 2 channels
- Two outputs, 16-bit resolution, 400MS/s sampling rate

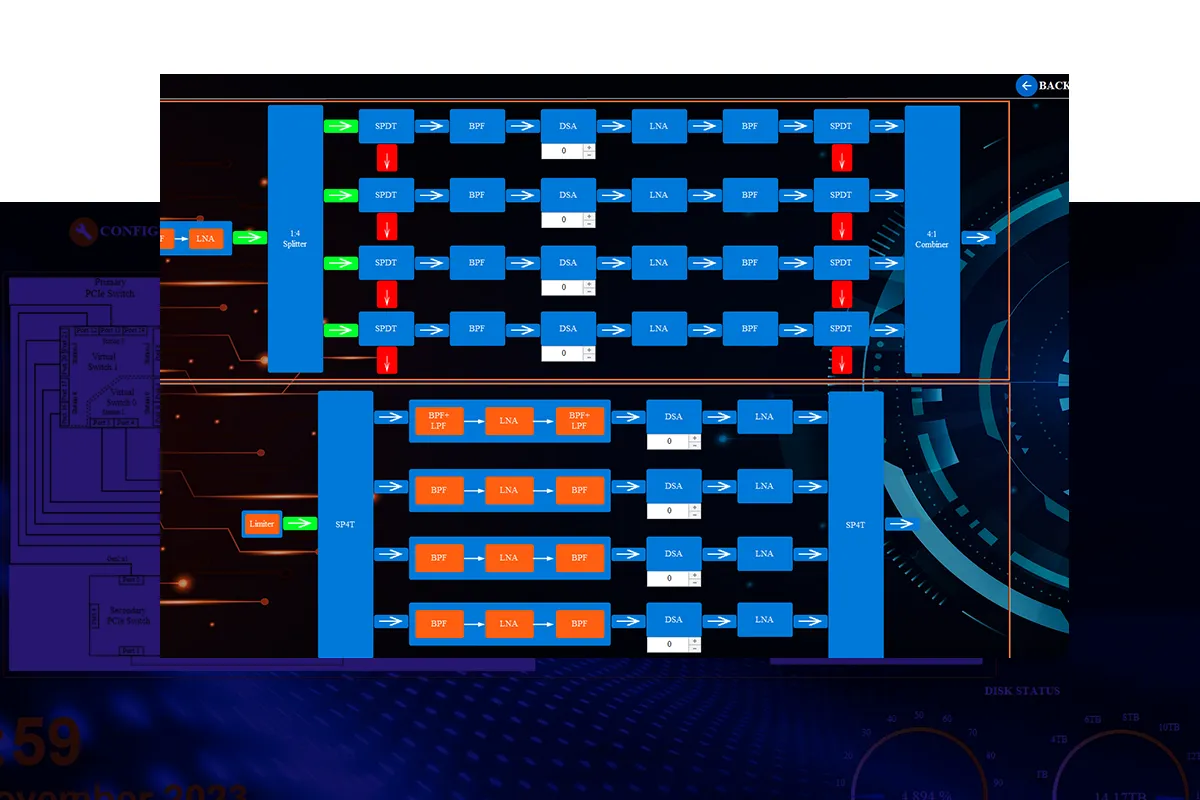

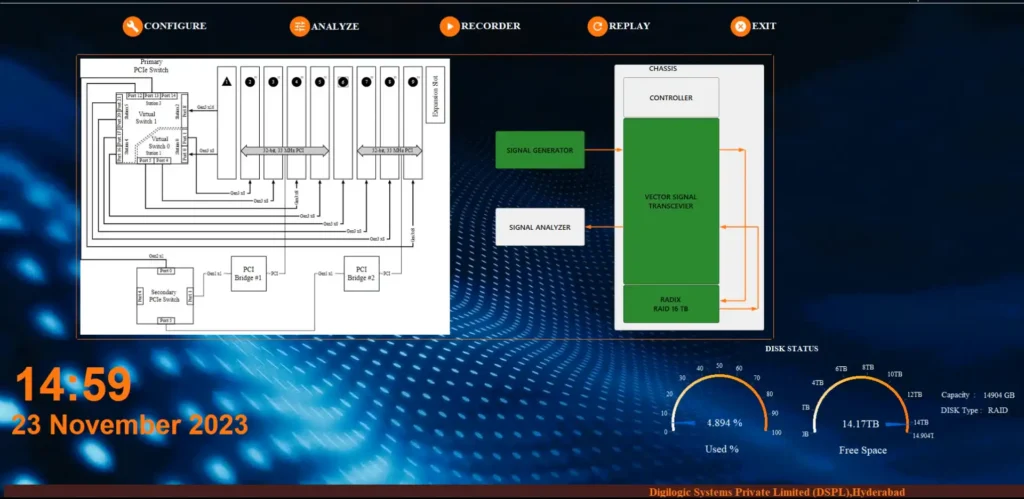

- Ethernet connectivity through a remote GUI application
Technical Specifications-IF Record & Replay System
| IF Input | |
|---|---|
| No of Inputs | 2 |
| Connector Type | SMA |
| IF Frequency | 70MHz |
| Bandwidth | 100KHz to 40MHz |
| Power Level | -65dBm to +7dBm |
| No of Bits | 14 Bit |
| SFDR | 80dB |
| Input Impedance | 50 Ω |
| Recording Time | 2 Hrs for 2 simultaneous channels (at 40MHz BW) or 4 Hrs for 1 channel of 40MHz BW |
| IF Output | |
| No of Outputs | 79% |
| Connector Type | SMA |
| IF Frequency | 70MHz |
| Bandwidth | 100KHz to 40MHz |
| No of Bits | 16 Bit |
| Power Level | -65dBm to +7dBm |
| SFDR | 75dB |
| Input Impedance | 50 Ω |
| Remote Control | |
| Ethernet connectivity through a remote GUI application running on Windows 7 | |
| Display | |
| 8.4" Touch Screen | |
IF Record And Replay System
