Digilogic’s Multi Emitter Scenario Simulator simultaneously generates pulsed CW and LFM waveforms for multiple Radars. Built on Commercial Off-The-Shelf (COTS), the product is designed to offer unified, cost-effective solution, empowering users to generate complex simulations easily.
Multi Emitter Scenario Simulator software is capable of simulating Antenna pattern types along with the following features:
- Radar Antenna parameters (Scan Rate, Beam Width).
- Signal parameters (Transmission Power, Frequency), PRF, Pulse width types, Scan Types, and Fading models using ITU standards.
Technical Specifications:
| Parameters | Specifications |
|---|---|
| Signal Type | Pulsed CW, LFM |
| Frequency Range | 1 – 26 GHz |
| No of Radars | 5 |
| Antenna Patterns | Uniform, Cos, Cos^2, Cos^3, Cos^4 |
| Radar Type | Scan, Omi |
| Radar Movement | Moving, Stationary |
| Scan Type | Circular, Sector, Helical, Spiral, Raster |
| Pulse width Types | Fixed, Staggered, Jittered, Switched |
| PRI Types | Fixed, Staggered, Jittered, Switched |
| Environmental Fading models | Rain, fog, and Cloud |

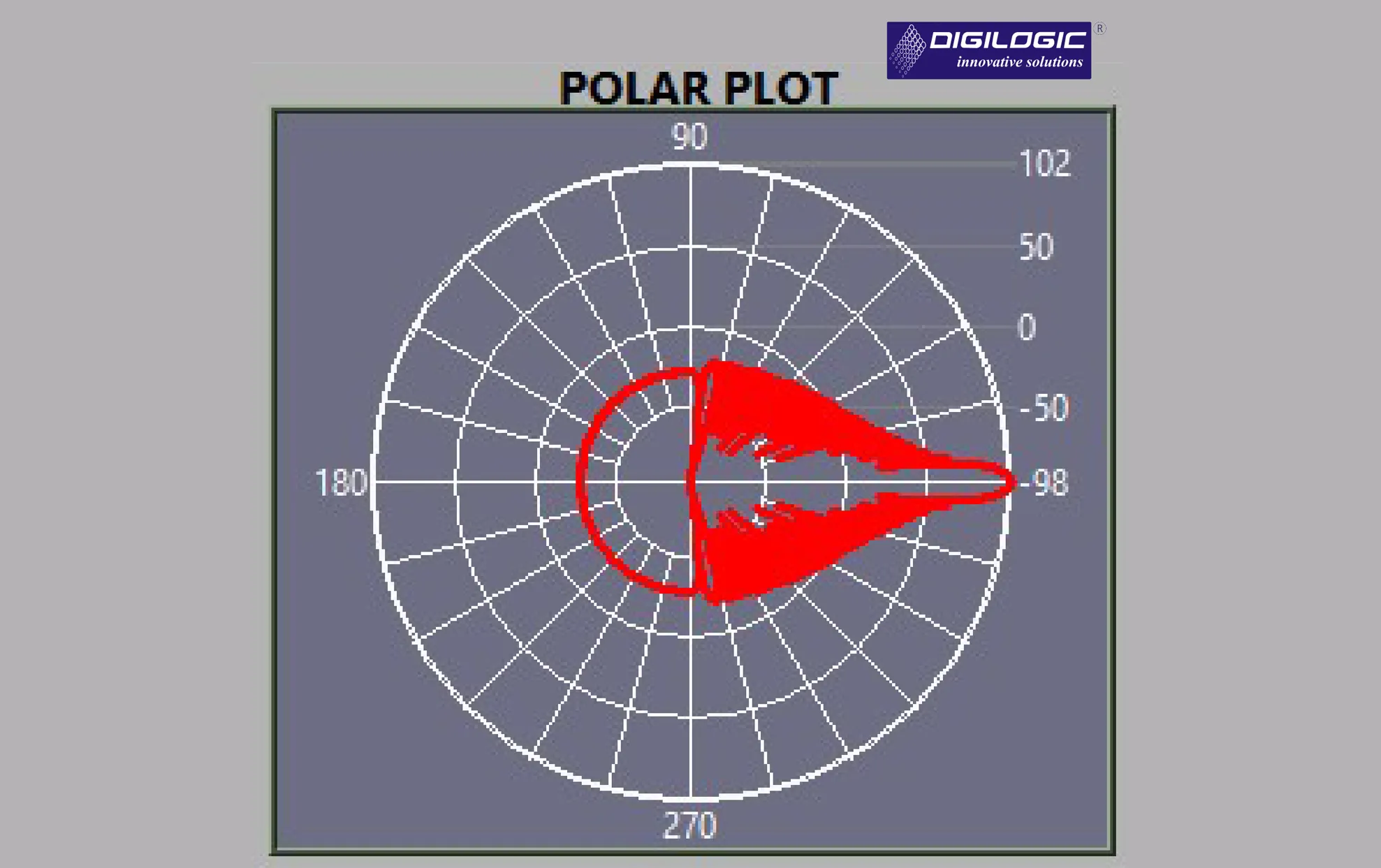

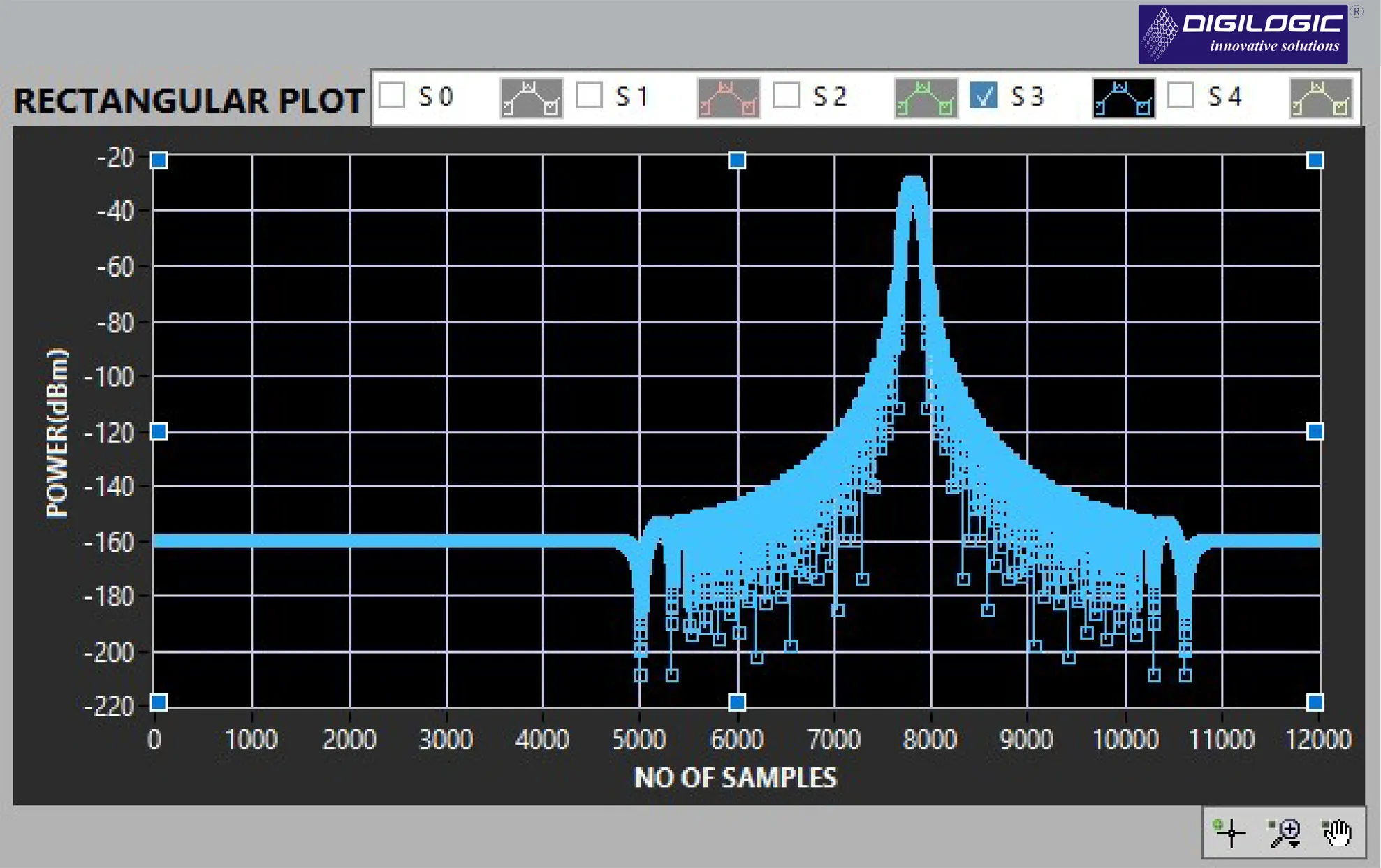

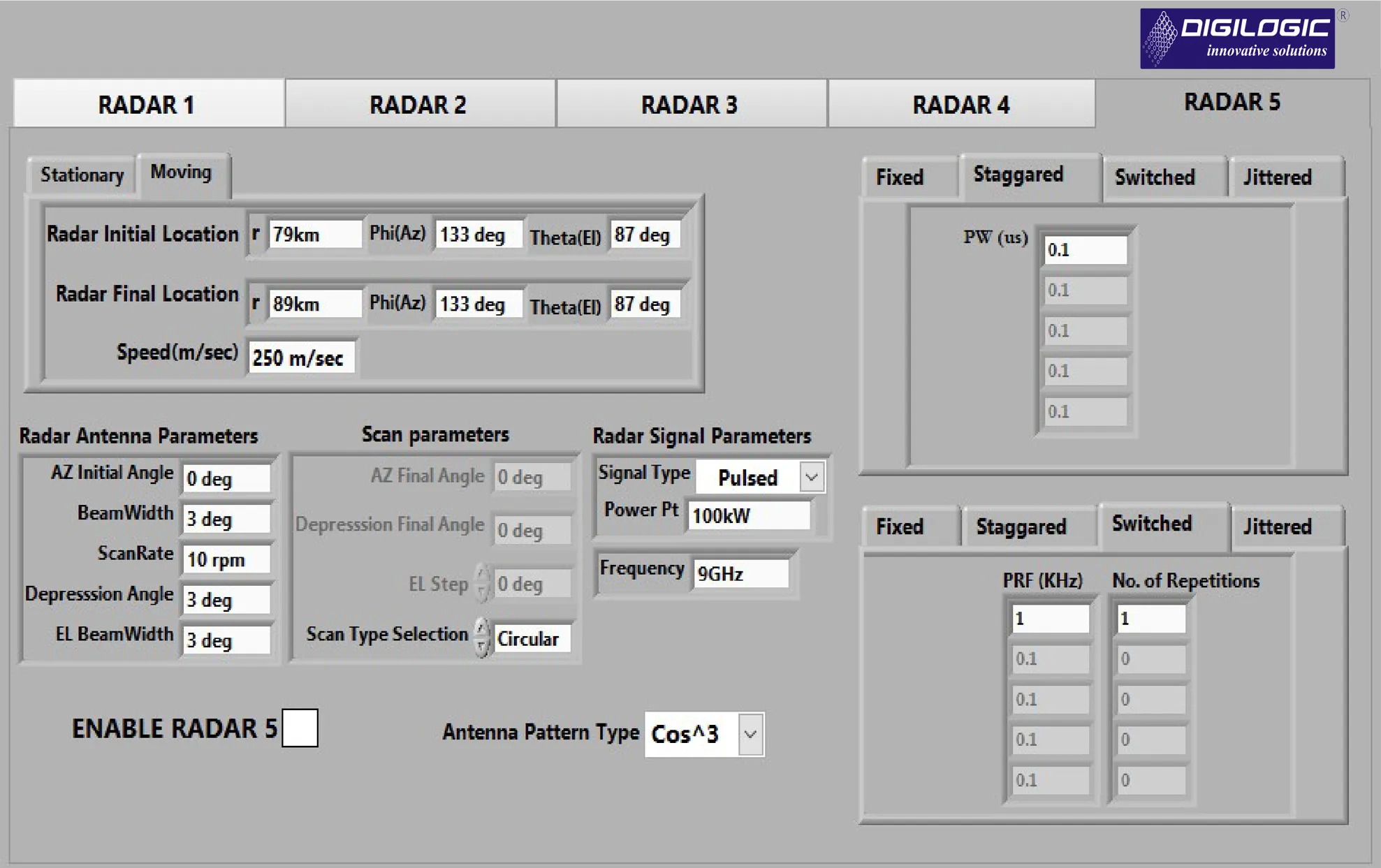

Graphical User Interface:
Multi Emitter Scenario Simulator
