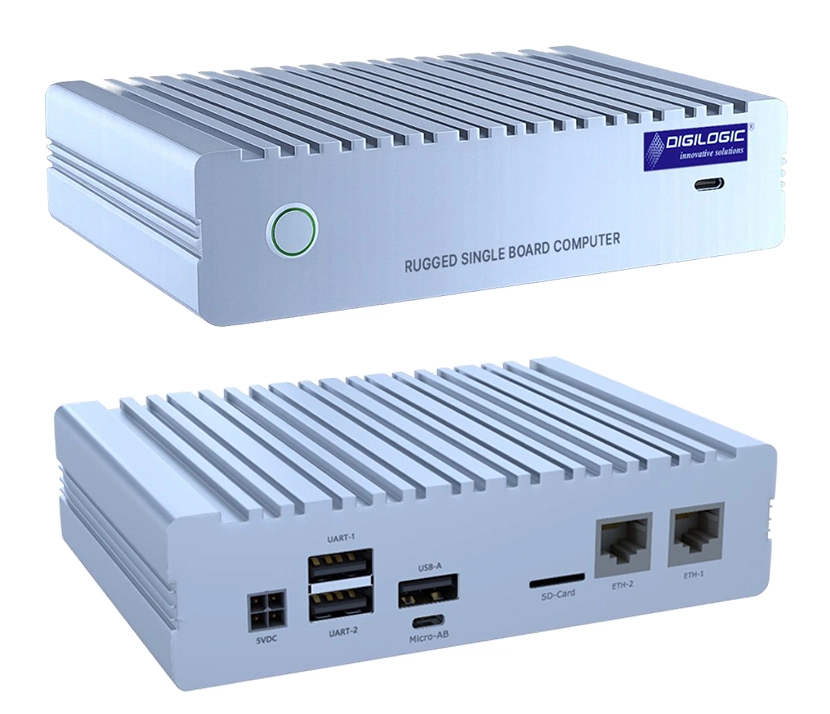

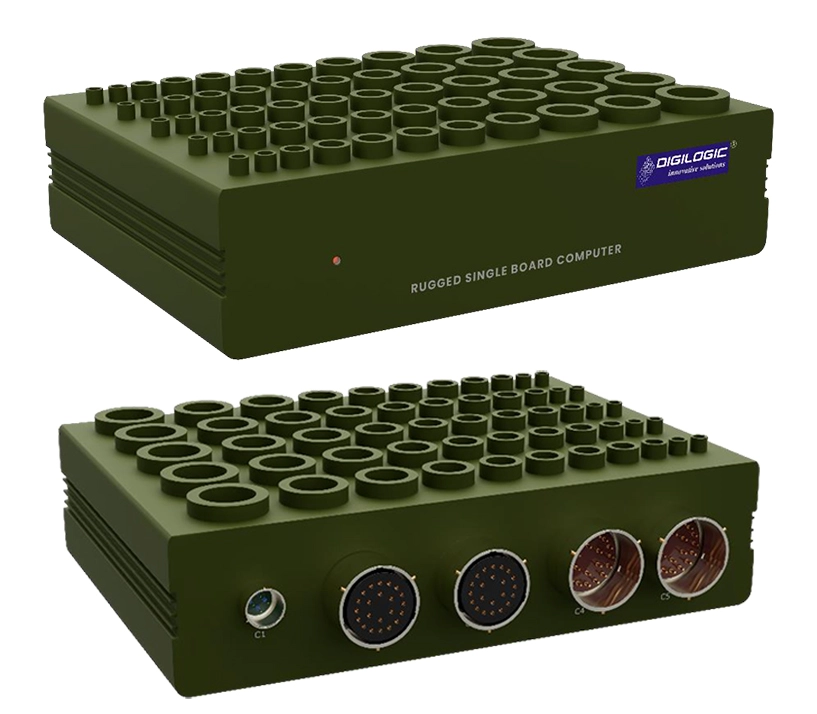

Digilogic Systems Rugged Single Board Computer (SBC) is a palm-sized, industrial and military-grade embedded computer designed for 24/7 reliable operation in harsh and remote environments. Built on a low-SWaP (Size, Weight, and Power) architecture, this rugged computing platform is ideal for applications that require continuous data acquisition, real-time processing, and unattended operation.
The system supports local data recording as well as real-time data streaming through multiple communication interfaces, making it suitable for defence, aerospace, industrial automation, and remote monitoring applications.
The platform is designed for maximum flexibility and scalability. It supports app-based software deployment and can be expanded with a wide range of custom I/O modules, including:
Engineered specifically for defence and aerospace applications, the SBC provides dependable high-performance computing for:
|
Parameter
|
Specifications
|
|---|---|
|
Application Processor Unit |
ARM Cortex-A9 (ARMv7-A architecture) |
|
Processing Engine |
NEON™ Media-Processing Engine |
|
Logic Resources |
125K Logic cells, 157K flip flops, 400 (18 * 25) |
|
Peak DSP Performance |
Peak DSP Performance (Symmetric FIR): 590 GMACS in Digital signal Processing. |
|
Memory |
Main Memory: 16GB |
|
Networking |
Ethernet (2 Ports): 10/100/1000 MBPS |
|
Connectivity |
USB 2.0: Type A & Micro AB |
|
Storage |
QSPI flash: 512MB |
|
Programming |
Operating System: Peta-linux |
|
Power |
Input Voltage: 5V DC |
|
Physical |
Dimensions (Industrial): 160 x 120 x 44 mm |
|
Operating Temperature |
Industrial: -30°C - +75°C |
|
Expansion |
Lines 16: LVDS, 4: SPI, 2: 12C 4: 12.5GB Tx-Rx lanes Optional I/O’s: ADC, DAC, SFP, Mil-1553, CAN, DIO’s |
|
Qualifications |
Environmental: MIL-STD-810G |
The platform uses industrial-grade memory and storage technologies designed for long-term reliability and data integrity. Features such as secure storage, fast startup, and protection against unexpected power loss make it suitable for mission-critical, defence, aerospace and industrial applications where data availability and system reliability are essential.
Digilogic Systems offers a customizable rugged embedded computing platform that combines low-SWaP design, modular I/O expansion, secure operation, and high reliability for demanding defence, aerospace and industrial environments.
Explore product details, specifications and features engineered for your needs.
A rugged single-board computer (SBC) is a compact, durable embedded computer designed for reliable 24/7 operation in harsh environments, supporting continuous data acquisition, real-time processing, and unattended applications.
The platform supports ADC, DAC, DIO, MIL-STD-1553, CAN, SFP, and serial interfaces including RS-232, RS-422, and RS-485.
Yes. The system is engineered for unattended 24/7 operation with local storage, real-time streaming, fast boot, and protection against power interruptions.
